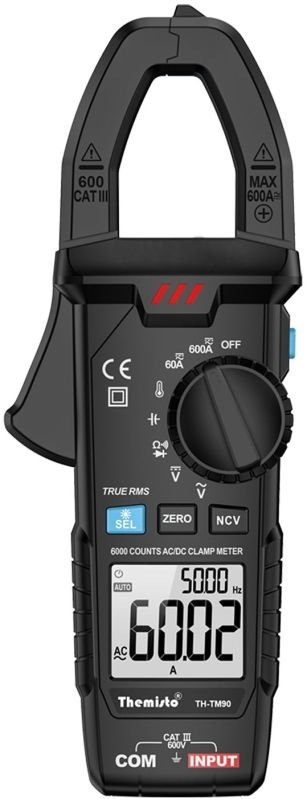

| Business Type | Supplier, Trader |
| Application | Industrial And Household Electrical Applications |
| Power Source | Battery |
| Type | Clamp Meter |
| Technology | True-RMS |
| Measurement Functions | AC/DC Current (60A/600A), AC Voltage (6V/600V), DC Voltage (600mV/600V), Loz (600V), Resistance (600/6K/60K/600K/6M/60M), Capacitance (6nF/100mF), Diode Testing, Continuity Checks, Frequency Measurement (6kHz/600kHz) |
| Special Feature | Non-Contact Voltage Detection (NCV) |
| Additional Features | Auto-Ranging, Data Hold Function, Backlit LCD Display, LED Flashlight, Auto Shut-off Feature |
| Safety Feature | NCV Functionality |
| Display | Backlit LCD |
| Auto Shut-off | Yes |
| Voltage Detection | Non-Contact |
| Range Selection | Auto |
| User-Friendly Features | Data Hold, Backlit Display, LED Flashlight, Auto Shut-off |
| Voltage Detection Type | Non-Contact |
| Frequency Measurement Range | 6kHz/600kHz |
| Measurement Range | Varied |
| Safety Enhancement | Enhanced User Safety During Inspections |
| Brand Name | Themisto |
- True-RMS Technology - Ensures precise measurements for both linear and non-linear loads, making it ideal for industrial and household electrical applications. It minimizes errors caused by fluctuating waveforms, providing reliable readings in complex circuits.

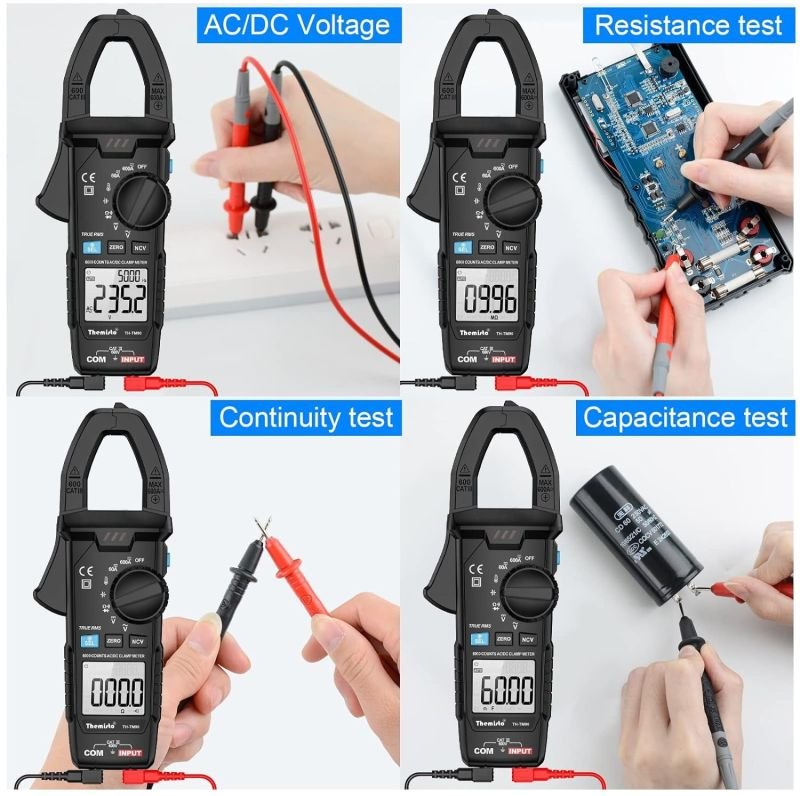

- Multifunction Measurement - - Measures AC/DC current (60A/600A), AC voltage (6V/6V/600V), DC voltage (600mV/6V/60V/600V), Loz (600V), resistance (600/6K/60K/600K/6M/60M), and capacitance (6nF/60nF/600nF/6µF/60µF/600µF/6mF/100mF), - Supports diode testing, continuity checks, and frequency measurement (6kHz/60KHz/600kHz).

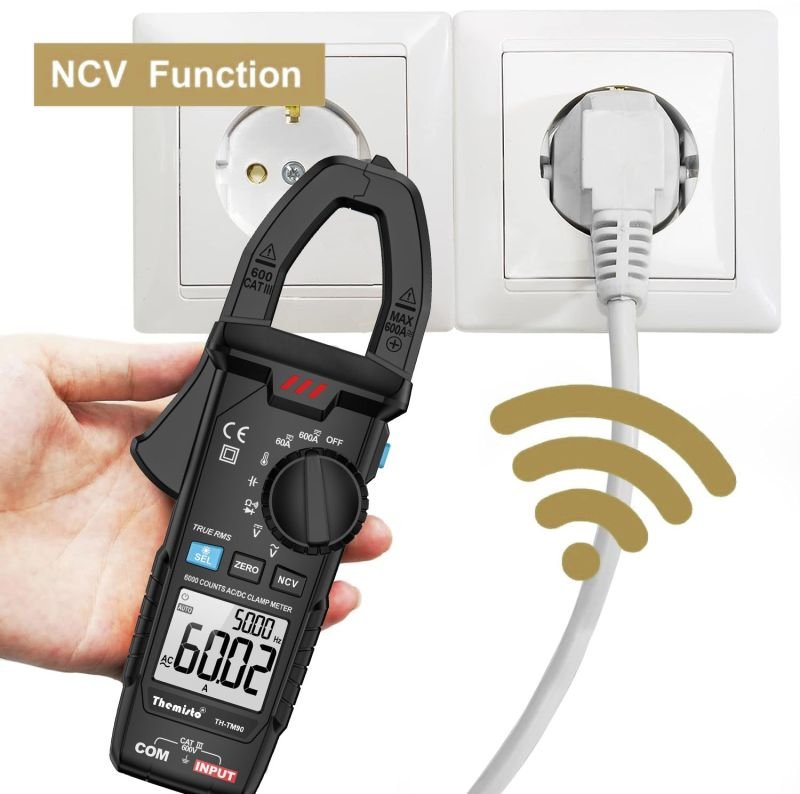

- Non-Contact Voltage Detection (NCV) - Equipped with NCV functionality to safely detect the presence of voltage without direct contact, enhancing user safety during inspections.

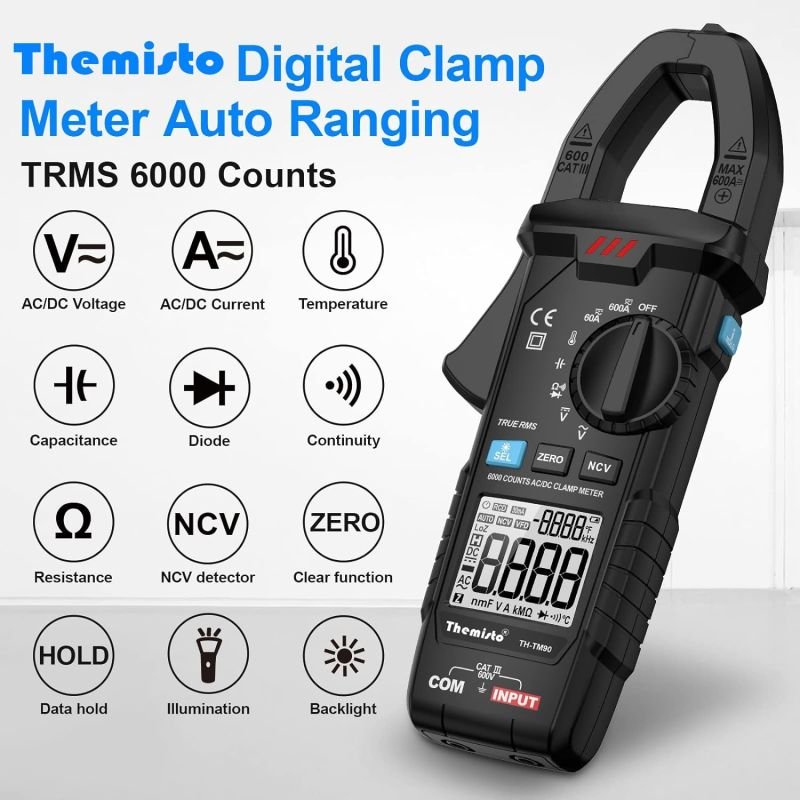

- Auto-Ranging – Automatically selects the correct measurement range for faster, hassle-free use.

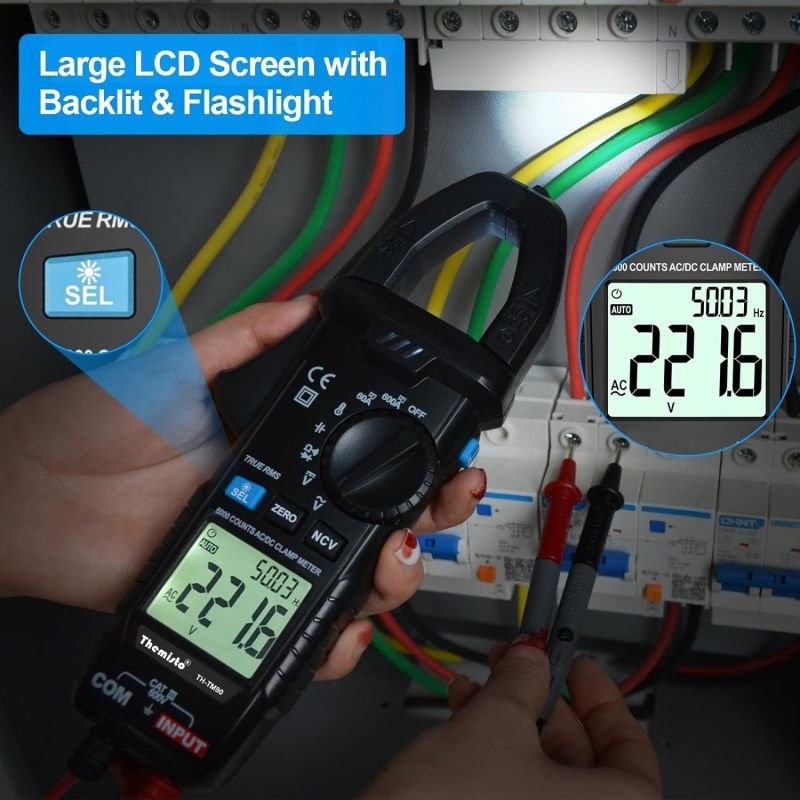

- User-Friendly Features - Includes a data hold function, backlit LCD display for visibility in low-light conditions, LED flashlight, and an auto shut-off feature to conserve battery life.
| Business Type | Supplier, Trader |
| Brand Name | Themisto |
| Type | Clamp Meter |
| Application | Industrial And Household Electrical Applications |
| Technology | True-RMS |
| Special Feature | Non-Contact Voltage Detection (NCV) |
| User-Friendly Features | Data Hold Function, Backlit LCD Display, LED Flashlight, Auto Shut-off Feature |
| Sampling Rate | High - Captures Rapidly Changing Signals |
- True-RMS Technology - Ensures precise measurements for both linear and non-linear loads, making it ideal for industrial and household electrical applications. It minimizes errors caused by fluctuating waveforms, providing reliable readings in complex circuits.

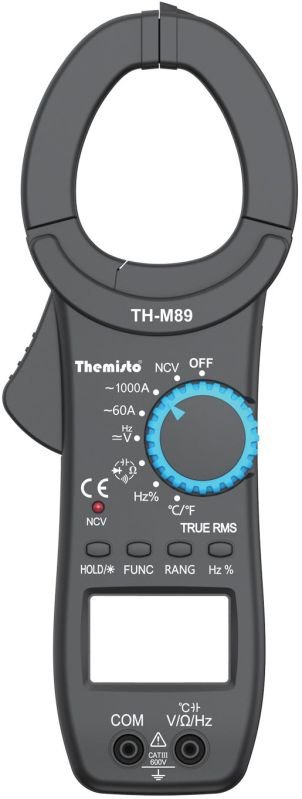

- Multifunction Measurement - - Measures AC current (60A/600A/1000A), AC voltage (6V/60V/600V/750V), DC voltage (600mV/6V/60V/600V/1000V), resistance (600/6K/60K/600K/6M/60M), and capacitance (6nF/60nF/600nF/6µF/60µF/600µF/100mF), - Supports diode testing, continuity checks, and frequency measurement (10Hz/100Hz/1KHz/10KHz/100KHz/1MHz/10MHz).
- Non-Contact Voltage Detection (NCV) - Equipped with NCV functionality to safely detect the presence of voltage without direct contact, enhancing user safety during inspections.
- User-Friendly Features - Includes a data hold function, backlit LCD display for visibility in low-light conditions, LED flashlight, and an auto shut-off feature to conserve battery life.
- High Sampling Rate - The meter quickly captures rapidly changing signals, giving reliable readings in unstable electrical environments.
| Business Type | Supplier, Trader |
| Power Source | Battery |
| Application | AC/DC Current Measurement, AC/DC Voltage Measurement, Circuit Continuity/resistance/diode Measurement, Frequency Measurement |
| Color | Black |
| Body Material | Plastic, Metal |
| Type | Clamp Meter |
| Packaging | Box |
| Special Features | Non-contact Voltage Detection, Jaw Design For Secure Attachment, Backlit Screen And LED Flashlight For Easy Reading In Dim Conditions, User-friendly Operation |
| Typical Application | Electrical Troubleshooting And Diagnostics |
| Display | Backlit Screen |
| Lighting | LED Flashlight |
| User Interface | Intuitive Controls |
| Maximum Current | 600A |
| Voltage Measurement | AC And DC |
| Frequency Measurement | Yes |
| Resistance Measurement | Yes |
| Diode Measurement | Yes |
| Brand Name | Themisto |
- NON-CONTACT VOLTAGE DETECTION: With the NCV non-contact voltage function, you can put the meter close to the power supply to detect whether there is AC voltage, without directly contacting the test probe with a charged object. It can be used to find live wires buried in walls or to find buried broken wires, etc. Suitable for higher AC voltage
- MULTI-FUNCTION: This digital clamp meter can do AC current measurement(600A) (This clamp meter can only measure one current conductor at a time), AC and DC voltage measurement, circuit continuity/resistance/diode measurement and Frequency measurement. Different functions meet your different measurement needs

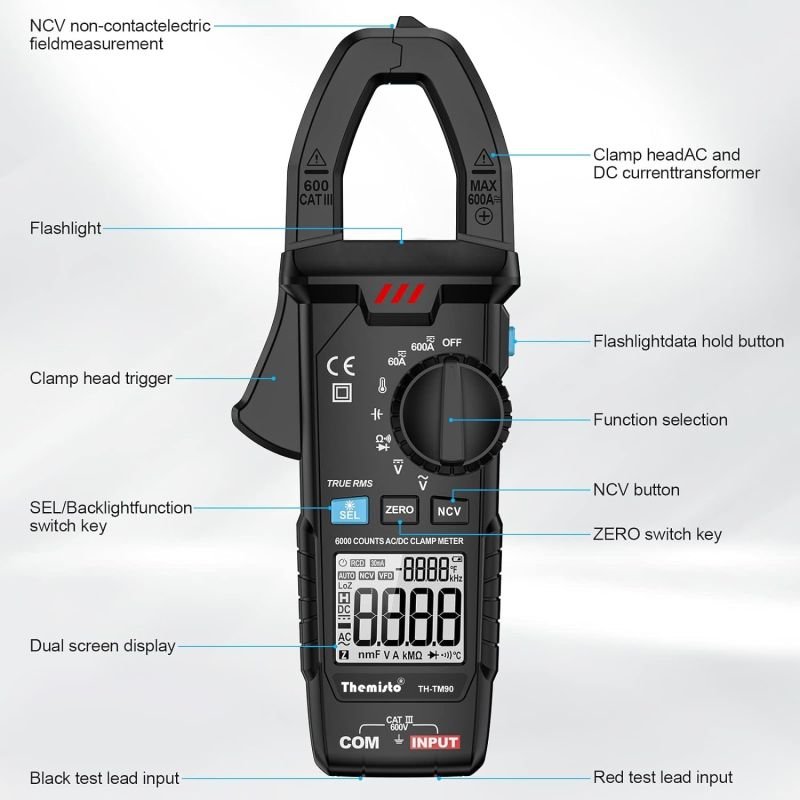

- JAW DESIGN: The jaw allows for easy and secure attachment to conductors, ensuring a stable connection and accurate readings during measurements.
- DIAGNOSTIC EFFICIENCY: Widely used by electricians and technicians, clamp meters facilitate efficient troubleshooting and diagnostics in electrical systems without the need to interrupt the circuit.
- EASY TO READ-The AC/DC clamp meter has a Backlit screen and LED flashlight so you can see the readings when working in dim or low-light conditions,like electrical closets, under buildings, behind appliances, and in other enclosed spaces,convenient LED flashlight illuminates a dimly lit area.
- USER-FREINDLY OPERATION: Equipped with clear displays and intuitive controls, clamp meters are designed to be user-friendly, providing accurate readings and enhancing overall ease of use for professionals in the field.
| Business Type | Supplier, Trader |

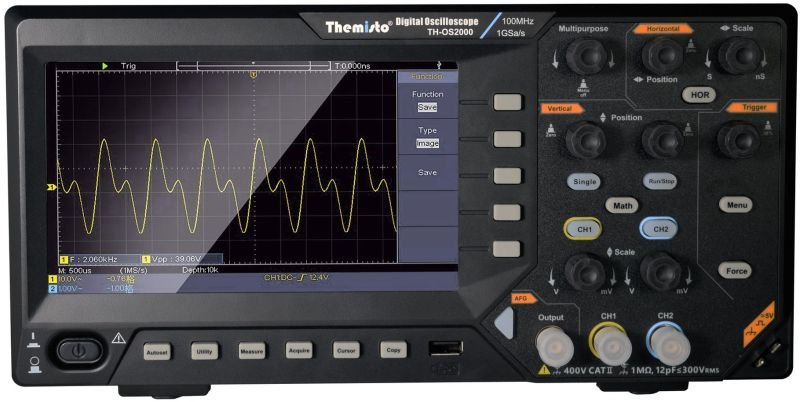

| Type | Digital Oscilloscope With Function Generator |
| Bandwidth | 100MHz |
| Channels | 2 Channels |
| Sampling Rate | 1GSa/s |
| Input Coupling | DC, AC, Ground |
| Input Impedance | 1 MΩ±2%, 20 PF±5 PF |
| Max. Input Voltage | 400V (DC+AC, PK-PK) |
| Channel-Channel Isolation | 50Hz: 100:1, 10MHz: 40:1 |
| Time Delay Between Channels | 150ps |
| Vertical Resolution | 8 Bits |
| Sensitivity | 20mV/div - 5V/div |
| Display Type | 7 |
| Display Resolution | 800x480 Pixels |
| Display Colors | 65536 Colors, TFT Screen |
| Output Voltage (Probe Compensator) | 5V, Peak-to-Peak Voltage ≥1 MΩ |
| Frequency (Probe Compensator) | 1 KHz |
| Temperature Range | 0°C - 40°C |
| Relative Humidity | ≤90% |
| Height Operating | 3,000 M |
| Cooling Method | Natural Cooling |
| Dimensions | 301mm X 152mm X 70mm (L*H*W) |
| Weight | About 1.1 Kg |
| Brand Name | Themisto |
Technical specifications:
- Bandwidth : 100MHz
- Channel : 2 channels
- Sampling Rate : 1GSa/s
- Mode : Normal, Peak detect, Averaging
- Input coupling : DC, AC , Ground
- Input impedance : 1 MΩ±2%, in parallel with 20 pF±5 pF
- Input coupling : 1X，10X，100X，1000X
- Max. input voltage : 400V (DC+AC, PK - PK)
- Channel –channel isolation : 50Hz: 100 : 1 10MHz: 40 : 1
- Time delay between channel(typical) : 150ps
- Bandwidth limit : 20 MHz, full bandwidth
- Sampling rate range : 0.5 S/s～500 MS/s
- Interpolation : (Sinx)/x
- Scanning speed (S/div) : 2 ns/div – 1000 s/div, step by 1 – 2 - 5
- Sampling rate / relay time Accuracy : ±100ppm
- Interval(△T) accuracy (DC - 100MHz) : Single：±(1 interval me+100 ppm×reading+0.6 ns); Average>16：±(1 interval +100 ppm×reading+0.4 ns)
- Vertical Resolution (A/D) : 8 bits (2 channels simultaneously)
- Sensitivity : 20mV/div～5 V/div
- Displacement : ±2 V (20 mV/div – 200 mV/div) ±50 V (500 mV/div – 5 V/div)
- Analog bandwidth : 100MHz
- Single bandwidth : Full bandwidth
- Low Frequency : ≥10 Hz (at input, AC coupling, -3 dB)
- Rise Time (at input, typical) : ≤ 3.18 ns
- DC gain accuracy : ±3%
- DC accuracy (average) : Delta Volts between any two averages of ≥16 waveforms acquired with the same scope setup and ambient conditions (△V): ±(3% reading + 0.05 div)
- Cursor : △V, △T, △T&△V between cursors, auto cursor
- Automatic : Period, Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot, Preshoot, Rise Time, Fall Time, +PulseWidth, -PulseWidth, +Duty Cycle, -Duty Cycle, Delay A→B , Delay A→B , Cycle RMS, Cursor RMS, Screen Duty, Phase, +PulseCount, - PulseCount, RiseEdgeCnt, FallEdgeCnt, Area, and Cycle Area.
- Waveform Math : ＋, －, *, / ,FFT
- Waveform storage : 16 waveforms
- Communication Port : USB 2.0 (USB storage）
- Counter : Support
- Trigger displacement : According to Record length and time base
- Trigger Holdoff range : 100 ns – 10 s
- 50% level setting (typical) : Input signal frequency ≥ 50 Hz
- Edge trigger : slope : Rising, Falling
- Video Trigger : Modulation : Support standard NTSC, PAL and SECAM broadcast systems
- Video Trigger : Line number range : 1-525 (NTSC) and 1-625 (PAL/SECAM)
DISPLAY :
- Display Type : 7" Colored LCD (Liquid Crystal Display)
- Display Resolution : 800 (Horizontal) × 480 (Vertical) Pixels
- Display Colors : 65536 colors, TFT screen
OUTPUT OF THE PROBE COMPENSATOR:
- Output Voltage (Typical) : About 5 V, with the Peak-to-Peak voltage ≥1 MΩ.
- Frequency (Typical) : Square wave of 1 KHz
ENVIRONMENT :
- Temperature : Working temperature: 0 ℃ - 40 ℃, Storage temperature: -20 ℃ - 60 ℃
- Relative Humidity : ≤ 90%
- Height Operating : operating : 3,000 m , Non-operating: 15,000 m
- Cooling Method : Natural cooling
MECHANICAL SPECIFICATIONS:
- Dimension : 301 mm× 152 mm×70 mm (L*H*W)
- Weight : About 1.1 kg
